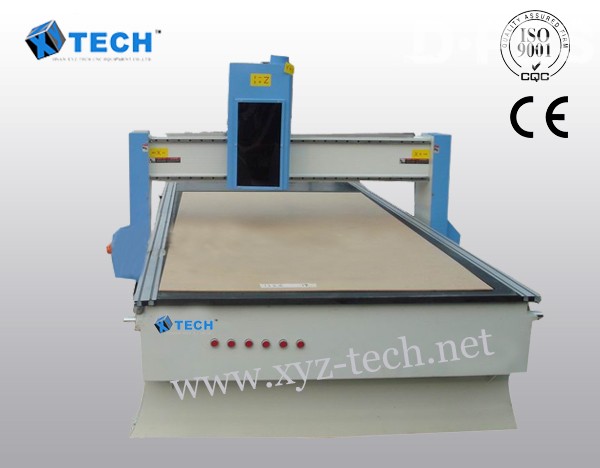

XJ1224 Multifunctional Advertising CNC Router with CE

Product Details:
Model:
1224
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
FOB Price:
USD 800.00-6000.00 /Set
Shipping Terms:
1
Shippment Port:
Qingdao
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
100 Set/Sets per Month
Delivery Time:
Packaging:
wooden case

Detailed Product Description

1.Features& spcialities

1. Integrated optimized design and high quality aluminum alloy frame, which ensure solid and warp-proof

2. unspace ball screw using Germany technology, aligning with high power driving motor and imported coupling, that make movement stable and work precise in a long time.

3. high power non-brushing motor, N-CVT, power saving, lower noise, strong cutting capability, which ensure a batch process for a long time.

4. Restoring function enable the machine stop running automatically while power off, and automatically restart to work when power on,and also can store the break point from which for later operation to start, with the function of anticipating working time, auto tool sensor, the rotating speed and processing depth could be adjusted optionally.

1.Technical parameter

Model

specification

XJ-1215

XJ-1218

XJ-1224

Working range

1200*1500*100mm

1200*1800*100mm

1200*2400*100mm

Reposition accuracy

0.02mm

Working speed

8m/min

Working delicacy

±0.01mm

Spindle power

1.5/2.2/3kw(optional). Invert-driven spindle motor cooled by water(or air)

Driving mode

Step motor

Spindle rotating speed

0~24000rpm/min

Working voltage

110v/220v/380v   50Hz/60Hz

Cutter

Φ3.175, Φ6, Φ12.7

Command

G-code*mmg*plt.*u00

Control system

DSP(128MB) or PC/MC control system

Drive machine

Gear-wheel on x.y.z axises

Guarantee&Aftersales Service

1 year

 3.Application field

 Sign board process, mould, bronzing mould, motor, trim injection mould, shoe mould, badge, pattern mould, art carve, dial, font mould, mold, sign and label etc.

4.Guarantee&Aftersales service:

a.  guarantee for one year

b.  24 hour technical support by email or calling

c.  User-friendly english manual for machine using and maintaining

5.Sample display

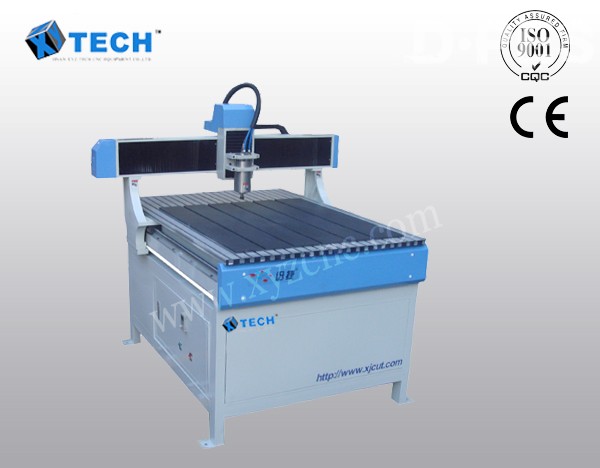

Other Products from this Supplier
