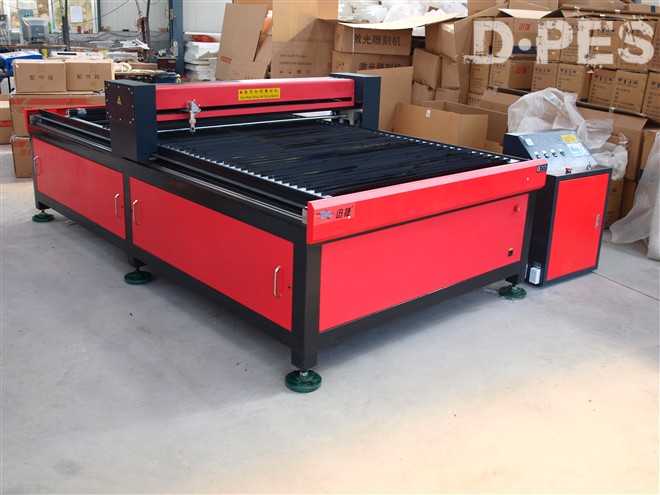

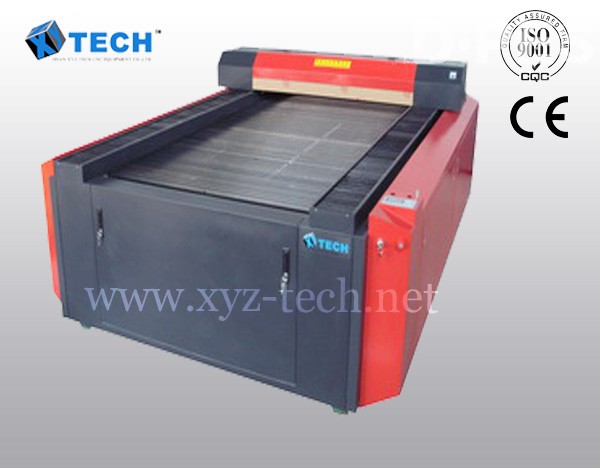

Laser cutting machine
1.Features
1)Adopt advanced DSP digital control system,international atandard laser power supply,integrated framework style,high stability,high-speed USB 2.0 interface output can support off-line working.
2)Transmit files directly from Coredraw,AutoCAD.
3)Optimization of mechanical and electrical design.
4)Big power and high stability lasr tube,imported lens and mirror,long life-span,one step cutting can reach 30mm thickness on acrylic.
5)Imported liear rail and high quality tapes for transmission,equiping speed-down structure.ensure high quality and high stability cutting
2.Parameter
Laser cutting Bed Technical Specifications
|
Item / Model
|
XJ-1325
|
Cutting area
|
1300x 2500mm
|
Laser power
|
80w/100w/130w
|
Laser type
|
CO2 sealed laser tube,water-cooled,10.6um
|
Engraving speed
|
0-60000mm/min
|
Laser Output
|
1-100%software setting
|
Resetting positioning accuracy
|
≤±0.01mm
|
Power supply
|
AC 110 - 220V ± 10%, 50 - 60Hz
|
Operating temperature
|
0 - 45°C
|
Operating humidity
|
5 - 95%
|
Min. shaping character
|
English 1.0mm x 1.0mm
|
Graphic format supported
|
BMP, PLT, DST, DXF, AI
|
Software supported
|
Tajima,CorelDraw, PhotoShop, AutoCAD
|
Driving system
|
Stepper
|
Cooling mode
|
Water-cooling and protection system
|
Equipment Dimensions
|
3080x2000x1120mm
|
Net Weight:
|
1100kg
|
Optional Spare Parts
|
Up-down clump, Rotary System, Honeycomb table
|
Recommended Spare Parts
|
Laser Tube and Lens
|
